Le Jumbo Jet 26500 by Vaponaute

The 26500 by Vaponaute

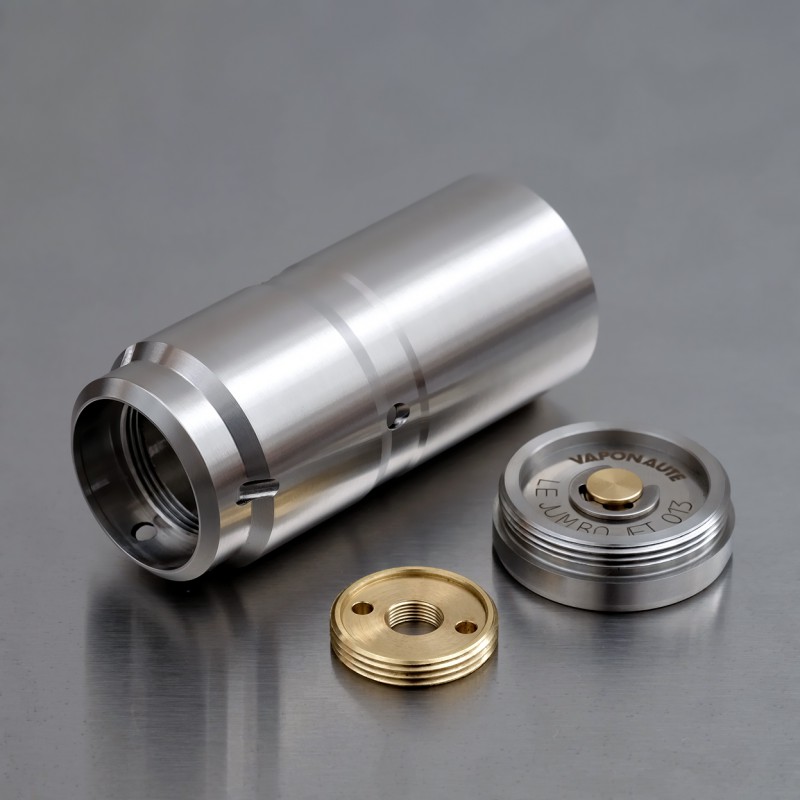

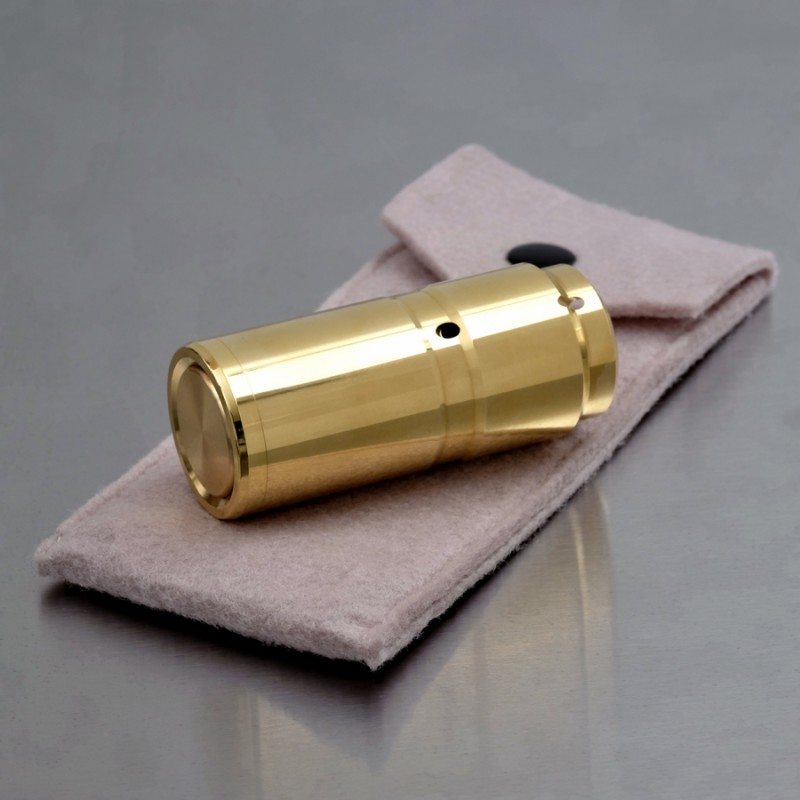

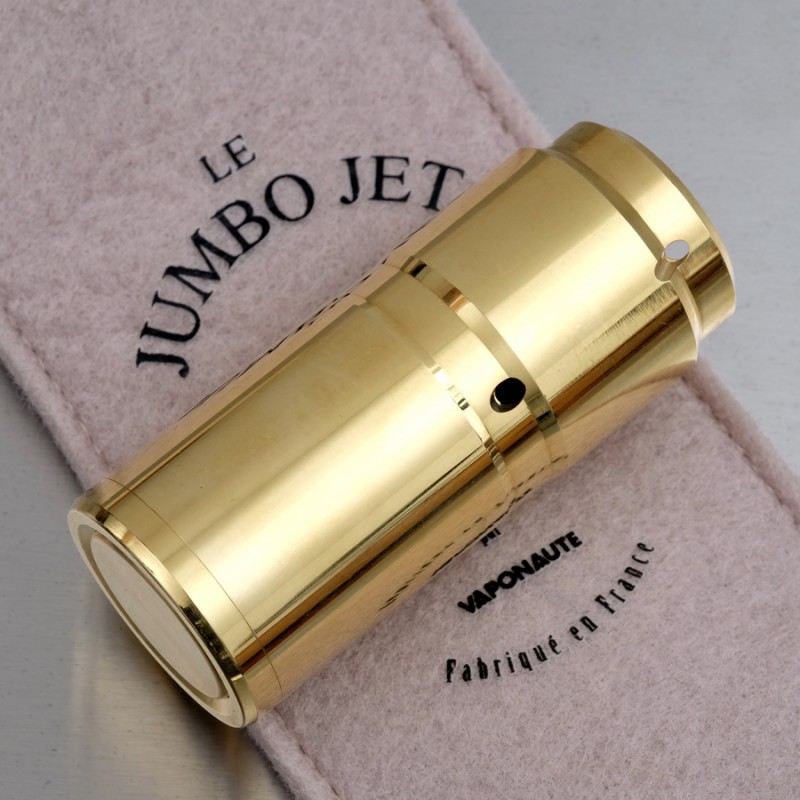

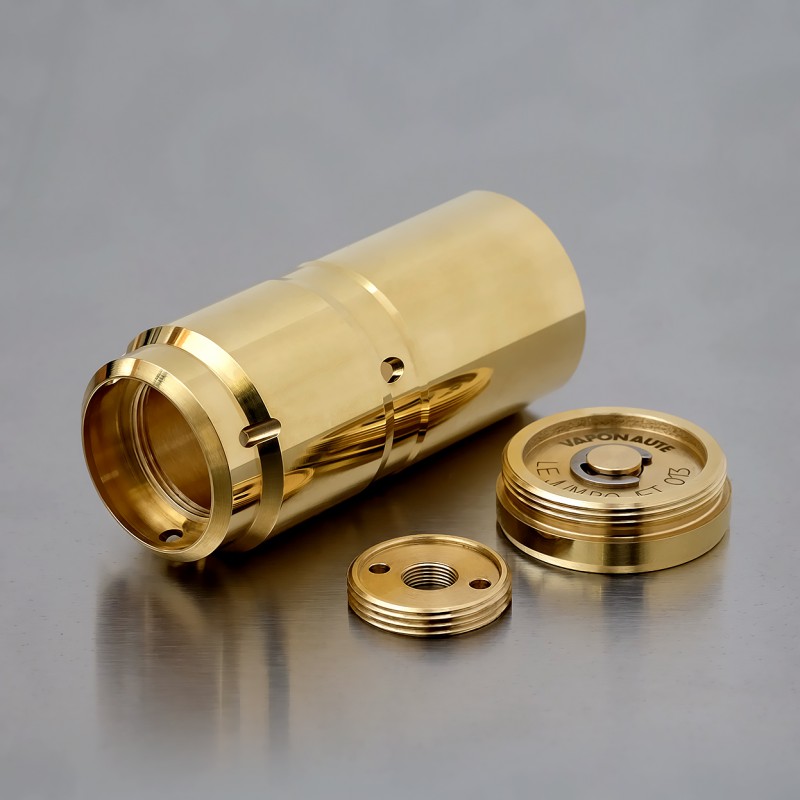

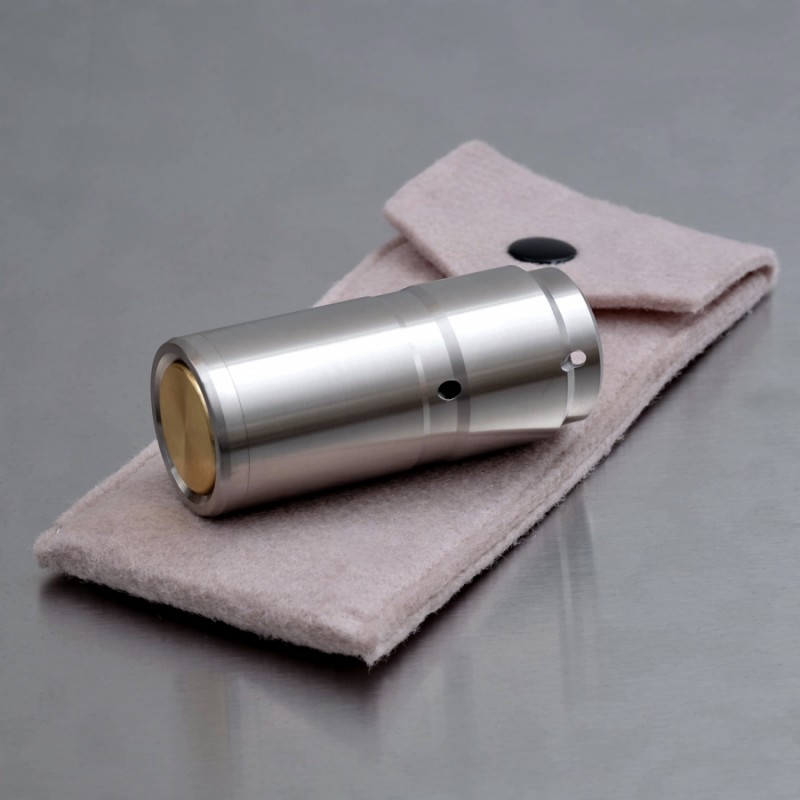

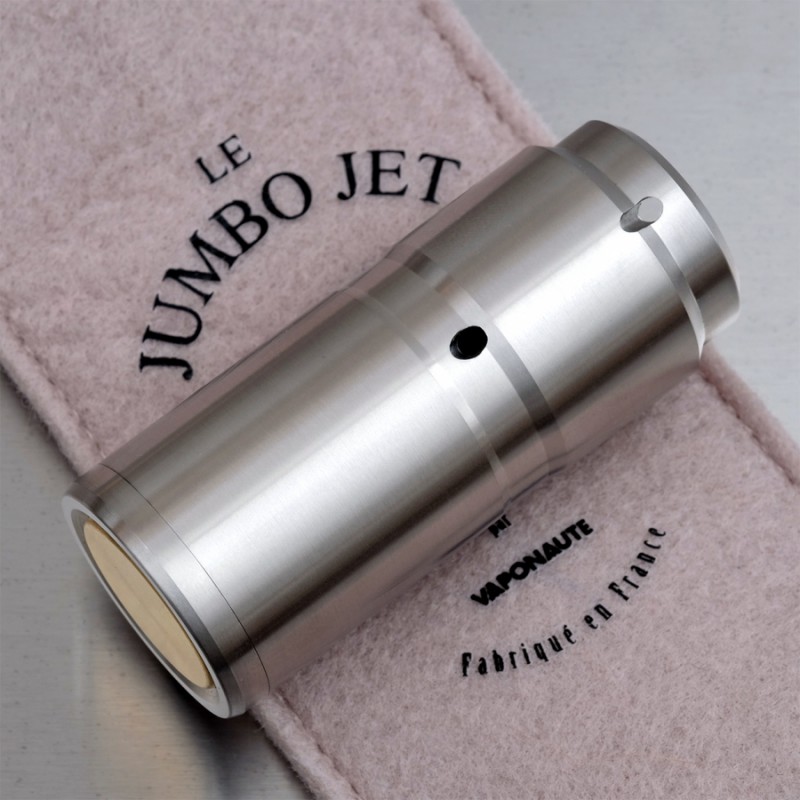

Stainless steel 316L mod and Brass mod with brass hybrid top cap, made in Haute-Savoie (France) on CNC and hand-assembled.

For experimented users only.

This is a high end mod, only for genesis and dripping atomizers but also Kayfun, with central plot post coming out from the 510 connector.
Recessed 22mm top only for ø22.00mm atomizer.

The recessed is ø22.05mm.
Three vent holes for battery gaz security.
No adjustable pin, the center positive post of the atomizer is in direct contact with the battery nipple.
We strongly recommend the use of EFEST 26500 purple batteries 3000mAh

The battery is directly adjusted when you screw the atomizer on the body with the brass hybrid kit provided.
The switch is recessed spring, without locking system.
You can use copper or silver electrical conductive grease in the switch to optimise conductivity.

Total lenght is 70mm
Bottom of the mod is 30mm diameter

If the switch is too soft you strech the spring as explained by Léopold : www.youtube.com/watch?v=6DdZwLq2d08
